Product Overview

FireFinder Plus is an Intelligent Analogue Addressable Fire Alarm Control Panel that is available in 1 to 8 loop panel options.
The FireFinder Plus is suitable for small to large sized fire detection systems and is compatible with Apollo XP95 and Discovery Detectors.
Powerful and flexible programming is achieved via AMPACs configuration tool ConfigManager Plus which includes many pre-engineered programming functions. Simple system programming is easily achieved via the front panel.
FireFinder Plus is configurable as a peer to peer network up to 99 panels/nodes with a maximum of 250 Loops.

Product Specification

Number of Detection Loops1-8 Fully Expandable
Detection ProtocolApollo XP95 and Discovery
Devices per Loop126
Number of Zones1999 Programmable Zones
Outputs (Programmable)4 x 24VDC @ 1A Max, 10K EOL
Relay Outputs (Programmable)5 x Voltage Free- 24VDC@1A
Power Supply5A, 14A  or 22A
Dimensions (mm)
SP1X500mm H x 405mm W x 150mm D
SP8X845mm H x 518.5mm W x 173mm D
SP16X1200mm H x 625mm W x 240mm D
SP1X Battery Cabinet300mm H x 405mm W x 150mm D
SP8X Battery Cabinet420mm H x 518.5mm W x 173mm D

Add-Ons

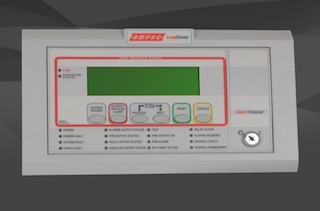

Smart Terminal Repeater
2 Wire Network Interface Board

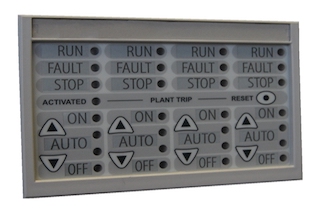

Fire Fan Module
8 Way Switch & Indicator Module
16 Way Input Board
8 Way Relay Board
Sounder Board
High Level Interface
8 Zone Conventional Board
32 Zone Indication Module

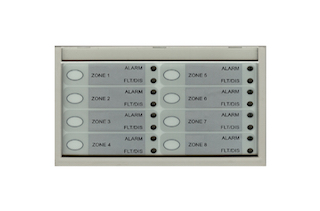

Zone Disable & Indicator Module
Fire Brigade Board
Agent Release Module
Agent Release Local Control Station
Fibre Optic Network Interface
