Product Overview

The Ampac ZoneSense PLUS Fire Alarm Control Panel is a versatile four or eight zone conventional panel. The user friendly navigation system provides simple operation during an emergency while also enabling complex cause and effect program- ming to be undertaken.
A range of modular panel add-on kits allows the panel to be professionally tailored to the requirements of each installation. This means small conventional panels can now be used in a wider range of applications.
ZoneSense PLUS offers you complete control. The panel can be easily upgraded and programmed on site. ZoneSense PLUS is approved to AS4428 and is available in ABS (BX1) or metal cabinets (BX20) with either four (4) or eight (8) zone conventional detection circuits

Product Specification

Detection Zones
Four (4) or Eight (8) x 2-wire monitored system
Detectors per Zone Circuit
40 (max)

Monitored Outputs


4 x  500 mA @ 27Vdc for EXT Bell, Warning Sys, ACF and ASE

Relay Outputs


1 x VFCO rated 1A @ 30Vdc (Fire)

1 x VFCO rated 1A @ 30Vdc (Fault)

Power Supply
2A Standard, 3A if OWS50 fitted
Battery Space
2 x 12Ahr (SP1X no Add-ons fitted)
Dimensions
505mm H x 405mm W x 150mm D (SP1X)

Add-Ons

Fire Brigade Board

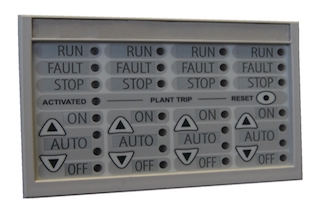

Fire Fan Module

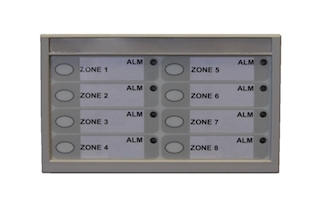

Switch and Indicator Card
Agent Release Module

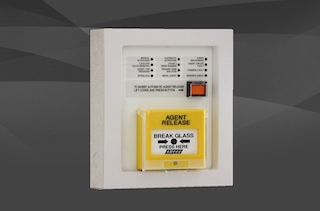

Agent Release Local Control Station
16 Way Input Board

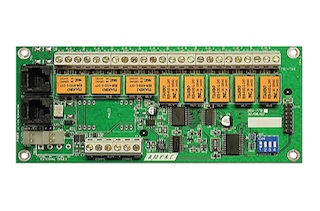

8 Way Relay Board
Sounder Board
