Product Overview

LoopSense is an Intelligent Analogue Addressable Fire Alarm Control Panel. Available in one or two loops, the LoopSense comes packed with options and features that facilitate flexibility, ease of installation and commissioning.

Product Specification

Number of Loop1 or 2 Loop version available
Detection ProtocolApollo XP95 and Discovery
Number of Zones32 Zones
Monitored Outputs4 x programmable rated 500mA @ 27V dc
Relay Outputs3 x programmable VFCO rated 1A @ 30V dc
Power Supply3A (max)
Battery Space2 x 12volt 24Ahr batteries

Dimensions

505mm H x 405mm W x 150mm D

Add-Ons

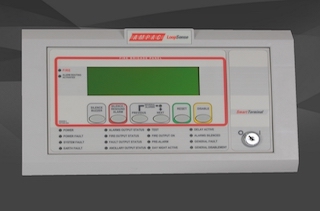

Smart Terminal Repeater
8 Way Relay Board

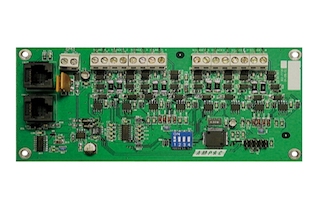

Sounder Board

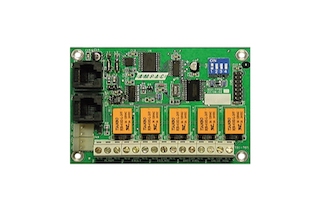

Fire Brigade Board

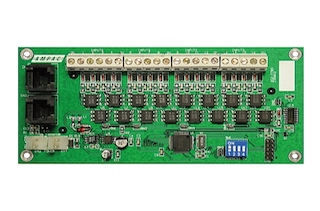

16 Way Input Board

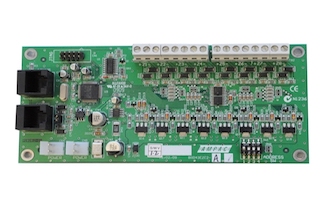

8 Zone Conventional Board

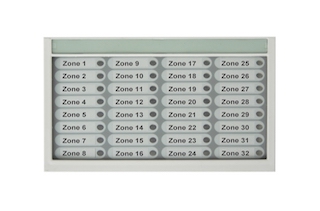

32 Zone Indication Module
Switch & Indicator Module

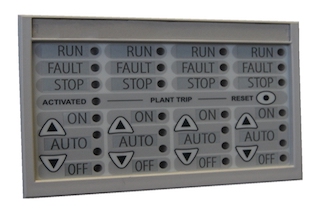

Fire Fan Module

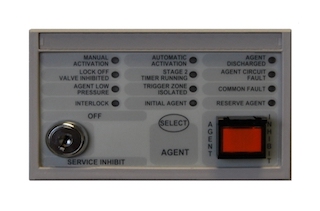

Agent Release Module

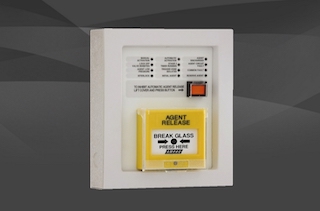

Agent Release Local Control Station

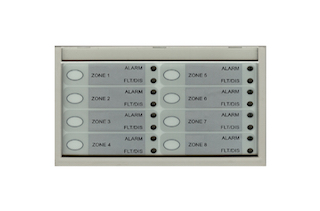

Zone Disable & Indicator Module
