Product Overview

FireFinder is a state of the art multi microprocessor controlled Intelligent Fire Alarm Control Panel. Modular in design, the FireFinder provides flexibility and versatility that can be configured to operate with both intelligent analogue addressable and conventional devices in the one system. Available in single or multiple loop configurations, the FireFinder supports the leading Apollo XP95 and Discovery detector protocols. The Ampac ConfigManager software tools provide a powerful combination with the FireFinder to configure the system operational and functional characteristics of an installation. Enhanced networking capabilities offer the user extended applications with FireFinder incorporating a Master/ Slave Fire control panel arrangement, true Peer to Peer systems, data gathering panels and SmartGraphics (a PC based application) for the supervision, monitoring and control of larger fire management systems.

Product Specification

Number of Detection Loops1-8 Fully Expandable
Detection ProtocolApollo XP95 and Discovery
Devices per Loop126
Number of Zones1999 Programmable Zones
Outputs (Programmable)4 x 24VDC @ 1A Max, 10K EOL
Relay Outputs (Programmable)5 x Voltage Free- 24VDC@1A
Power Supply5A, 14A  or 22A
Dimensions (mm)
SP1X500mm H x 405mm W x 150mm D
SP8X845mm H x 518.5mm W x 173mm D
SP16X1200mm H x 625mm W x 240mm D
SP1X Battery Cabinet300mm H x 405mm W x 150mm D
SP8X Battery Cabinet420mm H x 518.5mm W x 173mm D

Add-Ons

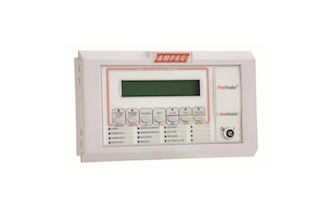

Smart Terminal Repeater

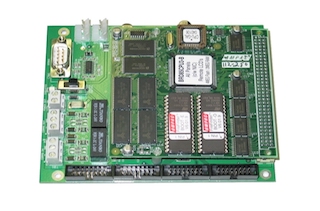

Network Interface Card (NIC)

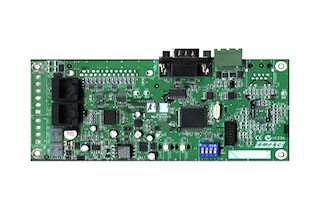

High Level Interface

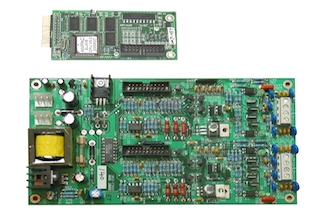

Loop Upgrade Kits

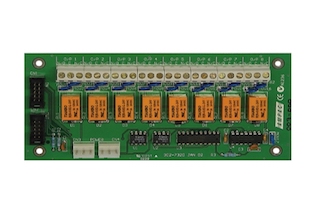

8 Way Relay Board - 1 Amp

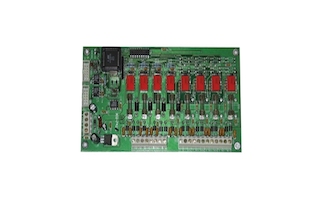

4 Plus 4 Bell Monitor Board

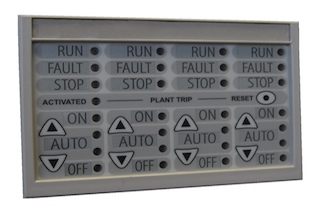

Fire Fan Module

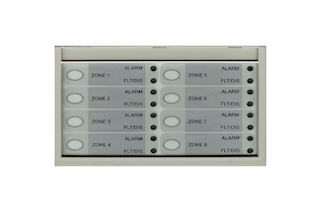

Zone Disable & Indicator Module
8 Way Relay Board - 5 Amp
8 Way Bell Monitor Board

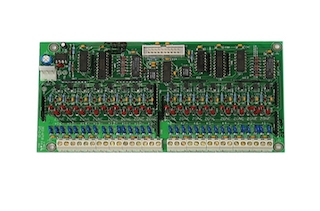

16 Way Conventional Zone Card

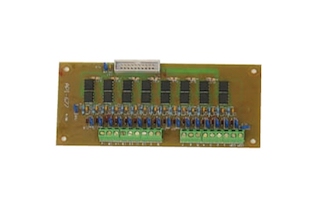

16 Way Opto Isolated Inputs
8 Way Switch & Indicator Module

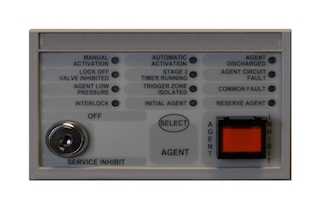

Agent Release Module

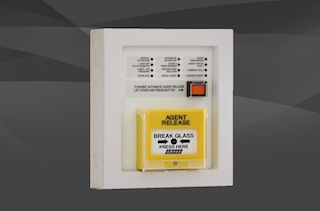

Agent Release Local Control Station

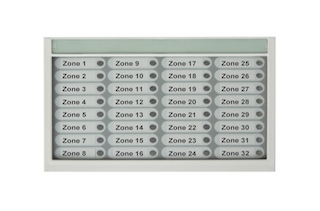

Panel Mounted LED Indications
Remote Mimic LED Driver

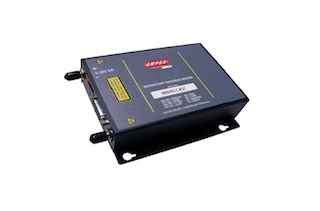

Fibre Optic Network Interface

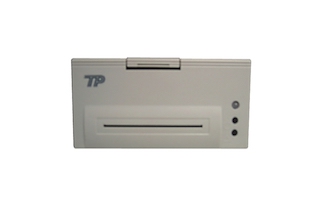

Panel Printer
